BFU-100M Fixed Ultrasonic Flow and Heat Meter Assembly :: Clamp-on Sensors 40mm - 100mm

SKU: BFU-100-M-S
BFU-100-M Fixed Ultrasonic Heat Flow Meter Assembly
Clamp-on Sensors 40mm - 100mm
DIN Rail Mount, 24V DC Supply
Back Lit LCD Display: Kwh, BTU's, m3, Gj
c/w 3 Metre Pt 100 Temp Probes, See options
  • Temp Probes
  • £544.50
  • £653.40 inc VAT
Qty:

Description

  • Weight
    0.5000 kg
  • SKU
    BFU-100-M-S

BFU-100-M Fixed Ultrasonic Heat Meter Assembly
Clamp-on Sensors 40mm - 100mm
DIN Rail Mount, 24V DC Supply
Back Lit LCD Display: Kwh, BTU's, m3, Gj
c/w 3 Metre Pt 100 Temp Probes, See options

A budget friendly, non-invasive heat meter and volume flow display which facilitates quick and simple installation without the need to cut into existing pipe-work. The sensors clamp onto the outside of the pipe using the stainless steel band-clamps supplied for flow measurement as do the additional temperature probes supplied for thermal heat energy measurement. It is not neccessary to turn off the supply of water to install the product. It is also possible to supply this model with GPRS/GSM Data logging and remote access via cloud server.

Ultrasonic flow meters are now widely used in the industrial and building sectors for monitoring hot water systems and energy efficiency monitoring. Their simplicity and reliability has seen their widespread adoption throughout the world as an accurate and reliable method of quantifying heat energy consumption. These flow meters can be used on virtually any pipe size or material, are non-invasive and therefore not prone to the levels of deterioration that are seen by intrusive flow meters. It is also fine to use for flow applications only.




Applications

• Water / Wastewater / Effluent
• Hot Water / Chilled Water / Mixture of Water and Glycol
• Petroleum Products
• Oil / Crude Oil / Fuel Oil / Diesel/ BioDiesel / Lubricant
• Oil /Hydraulic Oil (non aerated)
• Chemical and Solvents
• Water management in buildings, Civil structures
  District Heating / wastewater treatment plants, irrigation systems, and more
• Flow monitoring and flow control in Desalination plants, steel making plants, power plants, machining plants
• Liquid process control in chemical plants and industrial automation application
• Retrofit capability, to upgrade or augment existing systems using this non intrusive technolgy
• Automated batching
• Efficiency monitoring and improvement of heating / cooling systems, including solar / geothermal systems
• Hygienic Beverage, food and pharmaceutical processing application
• Telemetry of Remote flow monitoring network and leakage detection (Aqualink products required)

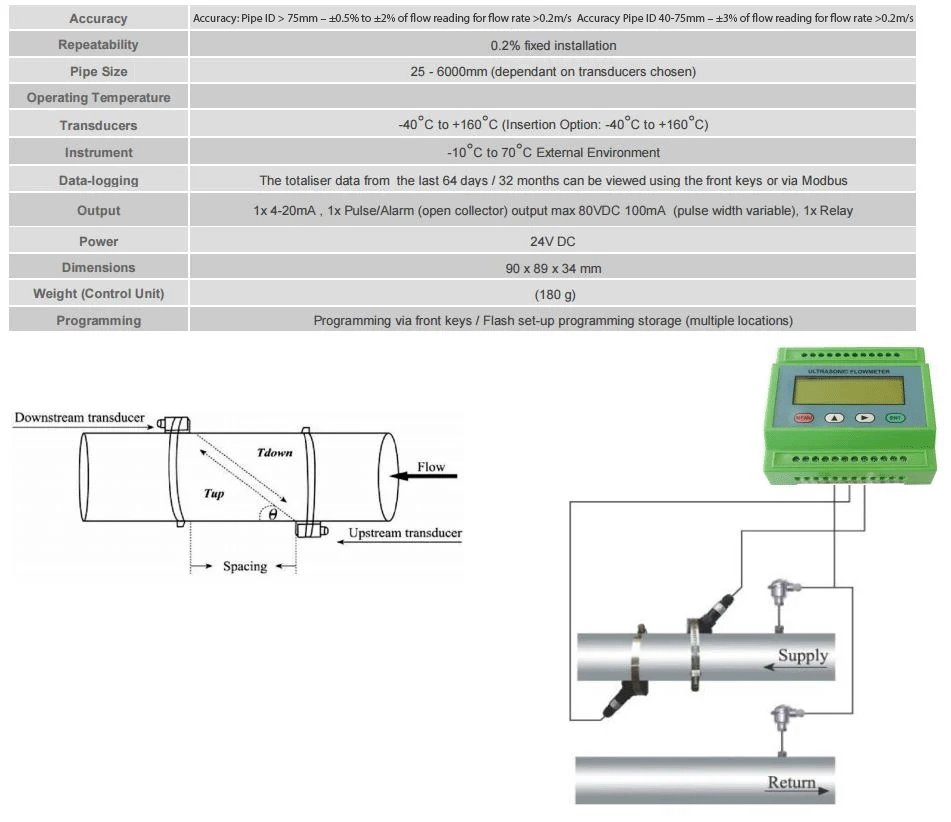

Specification


    BFU-100-M Fixed Non-invasive Flow / Heat Meter

    Power: 24V DC
    Supplied c/w 3 Metre Pt 100 Temp Probes (See options)
    Clamp-on Ultrasonic Transducers 40mm - 100mm

    ⇒ Horizontal or vertical Installation
    ⇒ Transducer Max Temp: -20C to +160C
    ⇒ Accuracy: <1% of reading above 0.6ft/sec / 0.2 m/sec
    ⇒ Outputs: 1x 4-20mA ,1x Pulse Output , 1x Alarm Output (All configurable)
    ⇒ Ingress Protection: Display= Indoor Installation, Transducers= IP65 (IP68 on request)
    ⇒ All cables, connectors and Ultrasonic couplant/grease supplied


    The BFU-100M is a fixed cost-effective Ultrasonic Heat Meter for continuous measurement of volumetric flow and heat energy. Ultrasonic flow meters or heat meters are now widely used in the industrial and building sectors for monitoring hot water systems and energy efficiency monitoring. Their simplicity and reliability has seen their widespread adoption throughout the world as an accurate and reliable method of quantifying heat energy consumption. These flow meters can be used on virtually any pipe size or material, are non-invasive and therefore not prone to the levels of deterioration that are seen by traditional intrusive flow meters. It is also fine to use for flow applications only.
