Portable Downhole Inspection Camera kit
Modular sytem supplied in rugged wheeled transport case
Bore Holes, Wells, vertical shafts and tubes
For viewing & recording in diameters of 25mm and larger
2x Rechargeable Lithium Ion Batteries (4.5 hours each)
The dipper-See EXAMINER downhole Inspection Camera includes everything a borehole inspector, well driller, or hydrogeologist needs to perform well inspections, maintenance and installation, quickly and accurately!
![](https://www.bellflowsystems.co.uk/images/filemanager/uploads/New%20Folder%209/dipper-see%20examiner.png)
Designed with portability in mind, this self-contained systemis ideal for viewing in wells, drains, vertical shafts, open bodies of water, boreholes and narrow tubes from 25mm (1") diameter

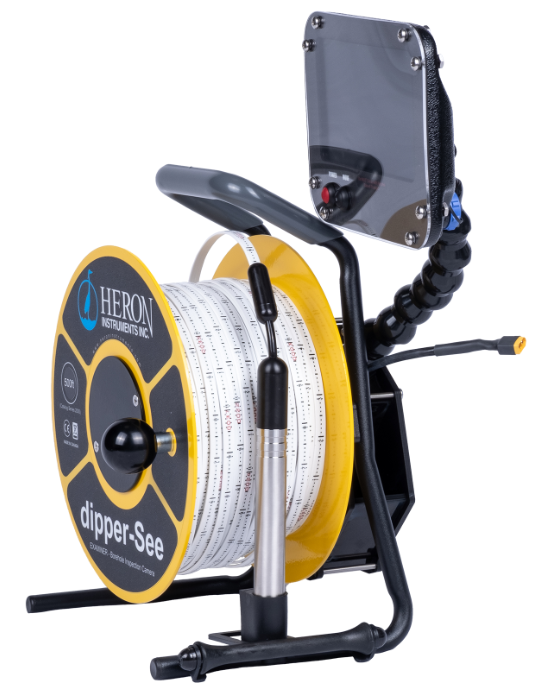

The adjustable positioning arm, conveniently attached to the frame, offers an ergonomic solution for adjusting the monitor for viewing the HD display screen at different angles and lighting conditions. The built-in hanger on the frame can support the unit at the top of the well, allowing for hands-free viewing while in the field.

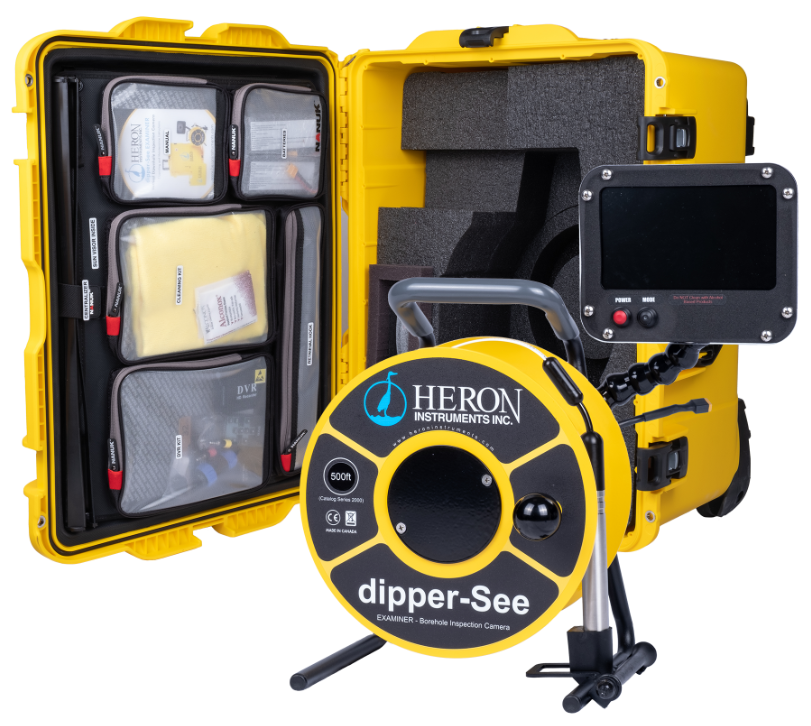

Included:
• White Polyethylene Tape
• 1” (25mm) Fully Submersible Camera Probe (Replaceable) w/ holder, IP65 Rated
• Display Monitor – 600×1024, 7” (177.8mm) IP65 Rated
• 2x Rechargeable Lithium Ion Batteries (4.5 hours running time each)
• Compact Battery Charger
• Centralizer Tool
• Retrieval Hook
• DVR (w/microphone) for audio & video recording
• 32GB SD Card
• Modular design for easy service/replacement
• Rugged, Wheeled Storage Case
