DN32 Multi-Jet Water Meter (Cold) Dry Dial 1 1/4" BSP :: Nuts, Tails, washers included

SKU: MJ-SDC-32
DN32 Multi-Jet Water Meter (Cold)
1 1/4" BSP Fittings
Dry Dial  Q3 10 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product

  • Pulse Output
  • £98.18
  • £117.82 inc VAT
Qty:

Description

  • Weight
    3.1000 kg
  • SKU
    MJ-SDC-32

DN32 Multi-Jet Water Meter (Cold)

1 1/4" BSP Fittings
Dry Dial  Q3 10 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product

This cold water model is supplied with Nut's, Tails and washers. It is suitable for secondary billing water volume measurement tasks and light industrial metering applications. This model features a frost resistant dial, tamper proof mechanism & pulse output option.


Typical Applications:

 Tennant billing
 Filter life monitoring
 Commercial building monitoring and connection to BMS
 Municipal building zone apportionment
 Industrial Water usage measurement in factories and facilities

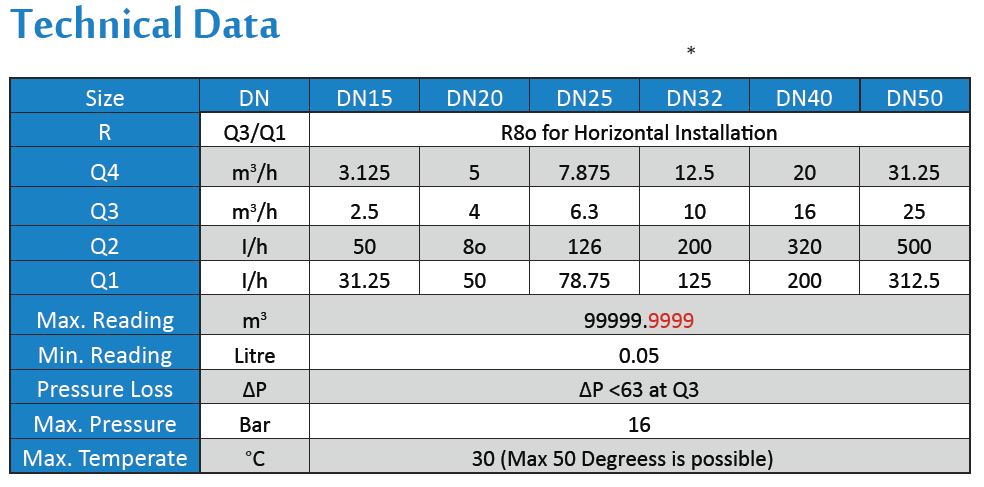

Specification



    DN32 Multi-Jet Water Flow Meter
    1 1/4" BSP Fittings
    Dry Dial  Q3 10 m3/hour
    Suitable for: Sub Metering / Light Industrial
    MID Approved R80 T30
    WRAS Approved Product





Downloads
