TFX-500w :: Transit-Time Ultrasonic flow meter :: Fixed size
This model can be specified with the display mounted remotely or it may be supplied as an integrated model so that the
display mounts straight onto the pipe with the sensor (compact mount)
Fig 1. Compact Mount Version

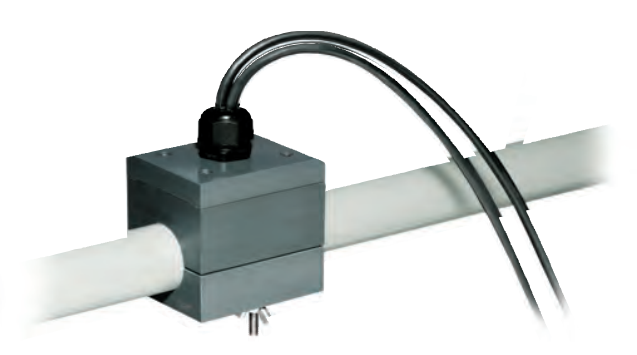

Fig 2. Remote Mount Version
Dynasonics® TFX-500w Ultrasonic Flow Meter
Clamp-on, non-invasive flow meter
For pipe size DN12 - DN250 (0.5" - 10")
9-28V DC powered
IP66 Enclosure
Bi-Directional flow measurement
Digital and Analog outputs
2x selectable digital outputs
- Frequency, totaliser pulse, alarm output
- isolated open collector, 5-30V DC, externaly or internally sourced with pullup reisttor
4-20mA output
Optional remote or integral transducers
Fixed or adjustable pipe sizes
Features:
⊕ Ability to measure a range of liquids with small amounts of suspended solids or aeration (e.g., surface water, sewage).
⊕ Bi-directional flow measurement system. Totalizer options include forward, reverse and net total.
⊕ Compact enclosure uses large, easy-to-read graphical display.
⊕ Rate-Total Backlit Display
⊕ 4-20mA Output
⊕ 0-1,000 Hz Rate Pulse and Dual Alarm Outputs
⊕ USB Programming Port
⊕ Remote Totalizer Reset
⊕ A/C (universal 90-264 vac) or optional D/C (11-28 vdc)
⊕ 4 button keypad
⊕ CE approved
