Hybrid Cartridge Flow Meters
The Cartridge style meter is the first open channel flowmeter to utilize hybrid technology. The technology combines a traceable flume & level system for low flow applications with higher flows covered by the accurate transit-time chordal velocity method This hybrid technology system allows for precise and highly accurate flow measurement during extremely low flows, high flows, surcharges, reverse flows, stagnation and non-uniform hydraulic profiles. On-board data logging with optional telemetry completes each cartridge meter package.
Why choose a Cartridge flow meter..... get the details here
THE CARTRIDGE FLOW METER IS A FACTORY ASSEMBLED UNIT, DESIGNED INSTALLATION AND VALIDATION IN 30 MINUTES
PRE-SIZED Each field ready cartridge is pre-sized for it's intended application.
Manufactured in 304 stainless steel, cartridges are installed and operational within minutes.
PRE-PROGRAMMED Each Cartridge Meter is factory programmed in strict accordance
to customer supplied operating specifications.
PRE-ALIGNED Installed accuracy is guaranteed through precision factory alignment and
calibration of each component encased within the cartridge assembly.
OPERATING BENEFITS:
 |
 |
 |
 |
30 Minute
A stainless Cartridge, pre-sized for its specific application, arrives at the job site as a fully integrated unit. Every component is factory precision aligned, calibrated and programmed in strict accordance to customer supplied operating specifications. |
Maintenance
By utilizing “above the flow” ultrasonic level sensors and non-fouling velocity sensors, the Cartridge Meter remains free from the ongoing problems of sediment build-up, fouled sensors and accumulated debris. |
Data Logging
|
Flow Lab Accuracy TraceabilityPrior to field shipment, each Cartridge Meter is NIST traceable tested, calibrated and certified at Eastech's Flow Metrology Laboratory under the identical size and flow conditions specified for its ultimate application. |
-

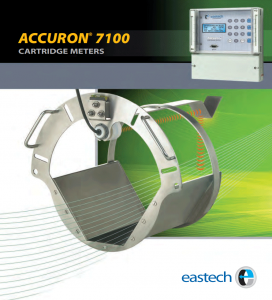

ACCURON® 7100 Cartridge Flow Meter, Permanent: Single Range
SKU: 7100
ACCURON® 7100 Cartridge Flow Meter
Permanent: Single Range
Pipe Size Range 4 “ to 24”
Open channel design
304 Stainless Steel Cartridge
Includes fully integrated Trapezoidal Flume & Level Sensor
with IP66 Backlit LCD Digital display
Accuracy: ±1-5% of actual rate Turndown Ratio: 60:1£3740.00
£4488.00 inc VAT -
ACCURON® 7200 Cartridge Flow Meter, Permanent: Dual Range
SKU: 7200
ACCURON® 7200 Cartridge Flow Meter
Permanent: Dual Range
Pipe Size Range 8 “ to 24”
Hybrid open channel design
304 Stainless Steel Cartridge
Includes Trapezoidal Flume, Level Sensor & Velocity Sensors
with IP66 Backlit LCD Digital display
Accuracy Low Flow +/- 3 to 5% of actual flow
High flow +/- 1-2% of actual flow£6380.00
£7656.00 inc VAT -
ACCURON® 7400 Cartridge Flow Meter, Permanent: Extended Range
SKU: 7400
ACCURON® 7400 Cartridge Flow Meter
Permanent: Extended Range
Pipe Size Range 8 “ to 24”
Hybrid open channel design
304 Stainless Steel Cartridge
Includes Trapezoidal Flume, Level Sensor & Dual Velocity Sensors
with IP66 Backlit LCD Digital display
Accuracy Low Flow +/- 3 to 5% of actual flow
High flow +/- 1-2% of actual flow£8360.00
£10032.00 inc VAT -
ACCURON® 7500 Cartridge Flow Meter, Permanent: Full Pipe Measurement
SKU: 7500
ACCURON® 7500 Cartridge Flow Meter
Full Pipe Measurement
Pipe Size Range 8 “ to 24”
Unique design - Fully filled open ended pipe suitable
304 Stainless Steel Cartridge
Includes Velocity Sensors (Single or dual path)
with IP66 Backlit LCD Digital display
Accuracy +/- 1 to 2% of actual flow£5690.00
£6828.00 inc VAT -
FlowScope 7800 Portable Cartridge Flow Meter, Dual Range
SKU: 7810
FlowScope® 7800 Cartridge Flow Meter
Battery Powered, Portable: Dual Range
Pipe Size Range 8 “ to 24”
Hybrid open channel design
304 Stainless Steel Cartridge
Includes Trapezoidal Flume, Level Sensor & Velocity Sensors
with Integrated Data Logging and wireless option
Accuracy:
Low Flow +/- 1 to 5% of actual flow
High flow +/- 1-2% of actual flow£5625.00
£6750.00 inc VAT
