Fluidwell N410 DIN panel mount batch controller with numerical keypad
ZoomCreated with Sketch.

Fluidwell N410 DIN panel mount batch controller with numerical keypad

SKU: N410-P-CX-HB-IR-OR-PG-XX-ZB

N410 Batch controller
24vDC and 110-230vAC powered
Full numerical keypad
DIN Panel mount, with IP67 front enclosure
Remote control inputs
LED Backlight
  • £800.31
  • £960.37 inc VAT
Qty:

Description

  • SKU
    N410-P-CX-HB-IR-OR-PG-XX-ZB

N410 Batch controller
24vDC and 110-230vAC powered
Full numerical keypad
DIN Panel mount, with IP67 front enclosure
Remote control inputs
LED Backlight

The N410 batch controller distinguishes itself by its userfriendly features:
Numerical keypad, clear programming menu structure, easy to read display and simple mounting enclosure.
The numerical keypad allows simple and fast changing of the preset batch quantity.
Pulse input model which accepts; Reed switch, NAMUR, NPN, PNP, Sine wave (coil), active pulse signal.
Selectable on-screen engineering units; volumetric or mass; ml, L, m³, GAL, USGAL, Kg, lb, bbl or no units.
The N410 is as standard provided with a bright backlight, which ensures it is easily read during day and night, and it can be adjusted in 6 steps from 0 to 100% brightness.
The preset value of the batched quantity can be programmed fast and easily by the operator via the numerical keypad.
Repeating batches are executed, paused and reset easily with a start, hold and reset button.
The included electo-mechanical relay can be used to control additional items such as solenoid valves, or with the addition of a relay can be used to switch a pump on and off with the batch.


Specification


    •Full numerical keypad.
    •Shows actual value, preset value, batch process indication, switch point indication and measuring units simultaneously.
    •Five control inputs for remote START, HOLD, RESUME, keypad lock and external alarm.
    •7 large digits (14mm, 0.56") for actual value, flow rate and total.
    •10 smaller digits (8mm, 0.3") for preset value, accumulated total and batch count.
    •Selectable on-screen engineering units for volumetric or mass: L, m³, USGAL, IGAL, ft³, bbl, kg, Ton, lb.
    •Easy operation to enter a batch value and to control the process.
    •Easy configuration with clear alphanumerical display.
    •A Just-In-Time back-up stores the latest batch information in case of a power failure.
    •No-flow monitoring.
    •Automatic overrun correction.
    •Bright LED backlight.
    •Auto backup of settings and running totals in EEPROM memory.
    •Ambient temperature: -20°C to +60°C (-4°F to 140°F).

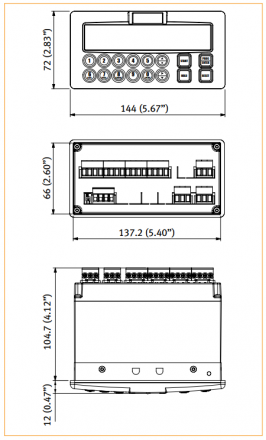

    •Aluminum IP67 (NEMA Type4X) DIN front panel of 144 x 72mm (5.67" x 2.83").
