Water Level Meters



Bell Environmental offers a wide range of water level meters which are designed and manufactured to be high quality,  rugged and dependable.

Water level meters can be used for a wide range of applications, including open water bodies, boreholes, standpipes and wells. These models can offer the measurement of static and falling water levels, as well as the length of casing and total well depth.

Static water levels
Depth of the water in a well

Drawdown water levels
Used to measure a falling water level during low flow sampling, purging or well development

Length of Casing
Used to measure the depth of a metal well casing. When the probe leaves the magnetic field of the well casing an audible and visual signal will become active

Total well Depth
Used to measure total well depth, the devices feature a pressure-sensitive plunger which when at the bottom of the well will create an audible and visual indication

To check the features included with the device, please see the product descriptions.

Key features of our water level meter include

♦ IP65 Electronic Module – Can be removed for easy cleaning and servicing
♦ Sensitivity switch – adjust for false signals during cascading water
♦ Probe Link – The probe can be sacrificed if the device becomes stuck in a well
♦ IP68 Probe – Fully sealed and pressure-rated*
♦ Tape Guide – Built In to protect the tape from sharp edges
♦ Vinyl holding grip – ergonomic, easy to grip
♦ Winding Handle – Made for easy winding with gloves on
Items: 1–9 of 9
Show: 20
Sort by: Recommended
Drop items here to shop
Product has been added
Checkout

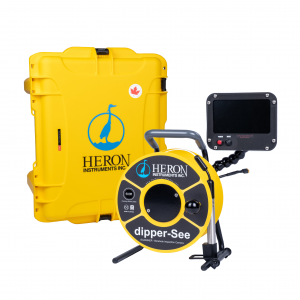

  • dipper-See EXAMINER :: Portable Downhole Inspection Camera System
    dipper-See EXAMINER :: Portable Downhole Inspection Camera System
    SKU: 2000

    Portable Downhole Inspection Camera kit
    Modular sytem supplied in rugged wheeled transport case
    Bore Holes, Wells, vertical shafts and tubes
    For viewing & recording in diameters of 25mm and larger
    2x Rechargeable Lithium Ion Batteries (4.5 hours each)
    £5698.00
    £6837.60 inc VAT
  • Water Level Meter 100
    Water Level Meter 100
    SKU: WLM100-0082
    Economical Water Level Meter
    Can be used for static and drawdown levels
    White Kevlar reinforced polyethylene tape
    Removable sealed electronic module
    lengths available up to 600m
    £443.91
    £532.69 inc VAT
  • Water Level Meter 200
    Water Level Meter 200
    SKU: WLM200-0082
    Premier Water Level Meter
    ASME Certified premium grade tape
    Can be used for static and drawdown levels
    High tensile steel with polyethyelene jacket tape
    Removable sealed electronic module
    Lengths available up to 600m
    £487.76
    £585.31 inc VAT

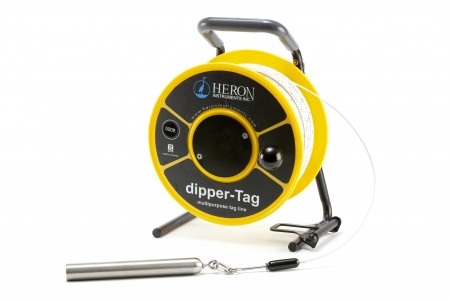

  • Dipper-Tag
    Dipper-Tag
    SKU: 1500
    multi Purpose Tag Line (Series 1500)
    Can be used for total well depth
    or attached Bailer or data logger
    White polyethylene tape and probe
    1" Stainles Steel "Plopper"
    Inc Carry case
    £434.00
    £520.80 inc VAT

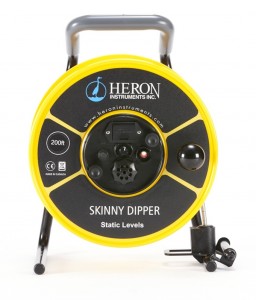

  • Skinny Dipper - Narrow Diameter Water Level Meter
    Skinny Dipper - Narrow Diameter Water Level Meter
    SKU: 1300
    Skinny Dipper - Narow Diameter Water Level Meter
    Can be used for static water levels.
    Easily collect drawdown data to calculate well production
    1/4" polyethylene tape and probe
    lengths available up to 150m
    £569.00
    £682.80 inc VAT

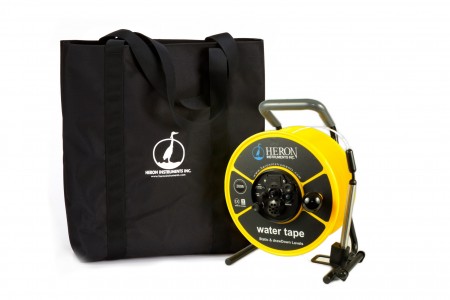

  • Water Tape :: Economical Water Level Meter w/Fixed Probe
    Water Tape :: Economical Water Level Meter w/Fixed Probe
    SKU: 1900
    Economical Water Level Meter
    Can be used for static and drawdown levels
    White polyethylene tape
    lengths available up to 300m
    £575.00
    £690.00 inc VAT
  • Dipper-T2 Water Level Meter
    Dipper-T2 Water Level Meter
    SKU: 1200
    Premium Water Level Meter - ATEX Approved
    Can be used for static and drawdown levels
    Yellow polyethylene tape
    Fixed Probe
    lengths available up to 600m
    £633.00
    £759.60 inc VAT

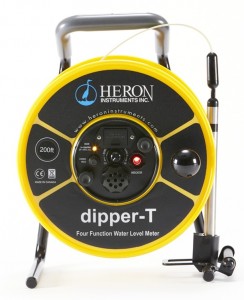

  • Dipper-T Four Function Water Level Meter
    Dipper-T Four Function Water Level Meter
    SKU: 1100
    Premium Four Function Water Level Meter
    Can be used for static, drawdown, well casing and well depth
    Multifunctional Instrument - interchangeable probes
    Lengths available up to 300m
    £944.00
    £1132.80 inc VAT
  • Dipper-Tough :: Harsh Environment Water Level Meter
    Dipper-Tough :: Harsh Environment Water Level Meter
    SKU: 1400
    Rugged Water Level Meter
    Harsh Environment usage
    Can be used for static and drawdown levels
    Kynar™ coated tape
    5/8” (15.9mm) Water Level Probe (IP68) w/ holder
    lengths available up to 300m
    £784.00
    £940.80 inc VAT
