S200 Digital Conductivity transmitter
Option for 2 Ponsel Digisens sensor inputs
Two 4-20ma and relay outputs
Digital Display
4 Electrode Design sensor design

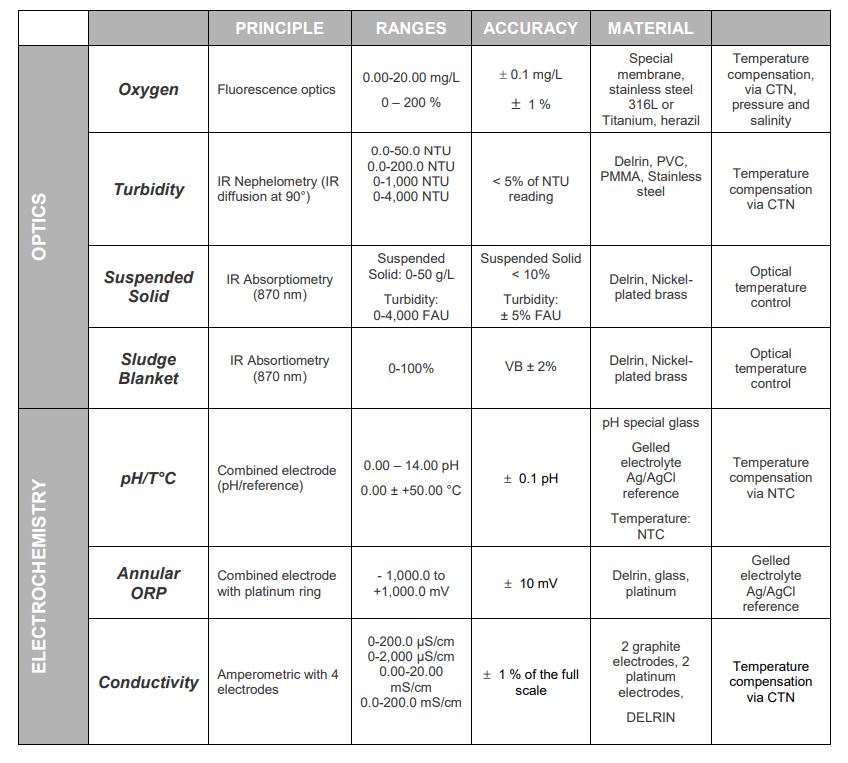

The S200 is a digital water quality transmitter that allows for the connection of two PONSEL digital sensors.
This allows for the user the option to measure -
• pH
• Redox
• Temperature
• Dissolved Oxygen (by optical channel)
• Conductivity
• Salinity
• Turbidity (NTU)
• Suspended material (g/L)
• Sludge Blanket (%)
The measured values from these sensors can be displayed on the S200 transmitter with analog and digital outputs available. The device comes as standard with a preconfigured regulatory functions to optimize process control. All data such as calibration, logs, users and measurements are stored directly on the sensor allowing for extremely reliable and traceable measurements.
C4E Conductivity Sensor
The C4E Conductivity Sensor works with a technology utilising 4 electrodes: an alternating current of constant-voltage is provided between a primary’s pair of electrodes in graphite. The secondary’s electrodes, which are platinum, regulate the voltage imposed to primary’s electrodes to reflect of the fouling. The voltage measured between the primary’s electrodes is a function of resistance, therefore represents the conductivity.
