Portable Ultrasonic Flow meter PF333 :: Transit Time NB 13-2000mm

SKU: 780-6018M

Portable Ultrasonic Flow meter - Liquids
Portaflow 333 Kit in Carry Case

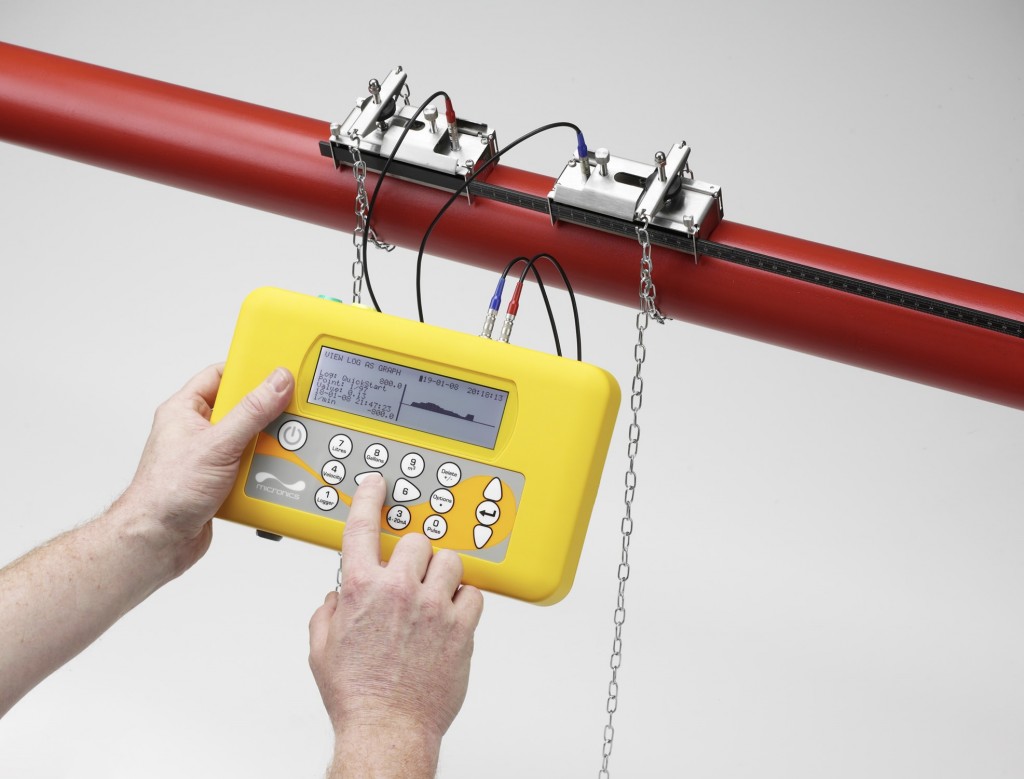

Transducers: 13mm to 2000mm OD pipes in magnetic guiderail
Pulse, 4-20mA and USB Outputs
Battery Powered with Integral Data logger

  • £5500.00
  • £6600.00 inc VAT
Qty:

Description

  • SKU
    780-6018M

PORTAFLOW 333 :: Clamp-on Portable Ultrasonic Flow meter NB 13-2000mm
for non-intrusive measurement of water and other liquids, Battery Powered

Portable Ultrasonic Flow meter - Liquids

Transducers: 13mm to 2000mm OD pipes in magnetic guiderail
Pulse, 4-20mA and USB Outputs
Battery Powered with Integral Data logger

 Features:

♦ Carry Case: - The PF330 is supplied in a hard wearing IP67 carry case.

♦ Flow Range – 0.1m/sec to 20m/sec bi-directional

♦ Display – 64 x 240 pixels graphic display

♦ Programming via 16 key control panel

♦ Battery or mains operation rechargeable battery

♦ Battery Life – 14 hours from fully charged, depending on load

♦ Power – 110 – 240VAC +/-10% supply via PSU

♦ 4 user selectable languages

♦ CE approved

♦ Light-weight, hand-held instrument with large, easy to read graphic display

♦ Two types of transducers; A and B

 ‘A’ Transducers: 13mm OD to 115mm OD pipes.

 ‘B’ Transducers: 50mm OD to 2000mm OD pipes.

♦ USB for downloading logged data to PC

♦ Live data logging availble using USB output

♦ Rechargeable battery with up to 14 hours operation

Specification

    Display – 64 x 240 pixels graphic display.
    Programming via 16 key control panel.
    Battery or mains operation.
    Rechargeable battery.
    Battery Life – 14 hours from fully charged, depending on load.
    Power – 110 – 240VAC +/-10% supply via PSU.
    4 user selectable languages including English, German, French and Spanish
    Accuracy Pipe ID 13-75mm – ±3% of flow reading for flow rate >0.2m/s.
    Accuracy Pipe ID > 75mm – ±0.5% to ±2% of flow reading for flow rate >0.2m/s.
    CE approved.

    ‘A’ Transducers:- 13mm OD to 115mm OD pipes.
    ‘B’ Transducers:- 50mm OD to 2000mm OD pipes.


    Transducer Operating Temp:- ‘A’&‘B’ -20°C to +135°C. (Up to 200°C high temp optional also available)
    Outputs:- Opto Isolated 4 –20mA; USB; 3x pulse outpus

    Data Logging:- 100,000,000 data points. Up to 12 named recording sites.
    Data displayed locally in text or graph format. Real time or stored.
    Can be downloaded via USB to CSV file and export to excel.
