Intelligent Conductivity Monitor

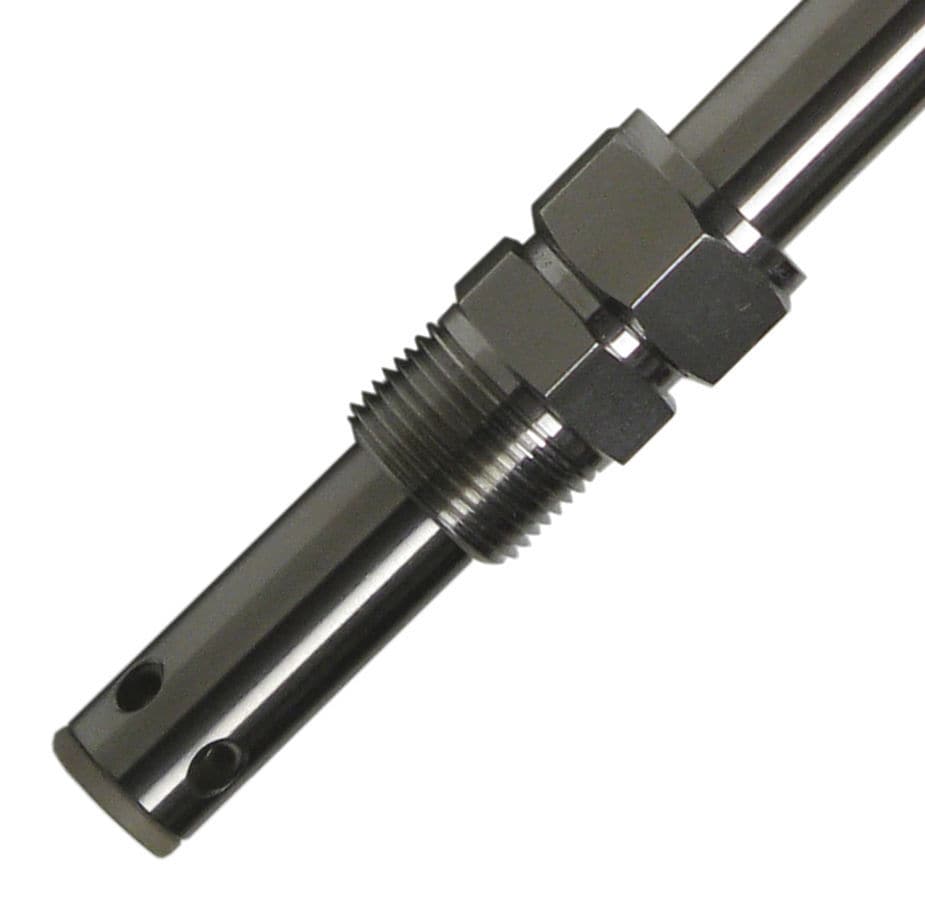

Contacting Sensor
Stores identity and calibration information
Insertion and submersion options

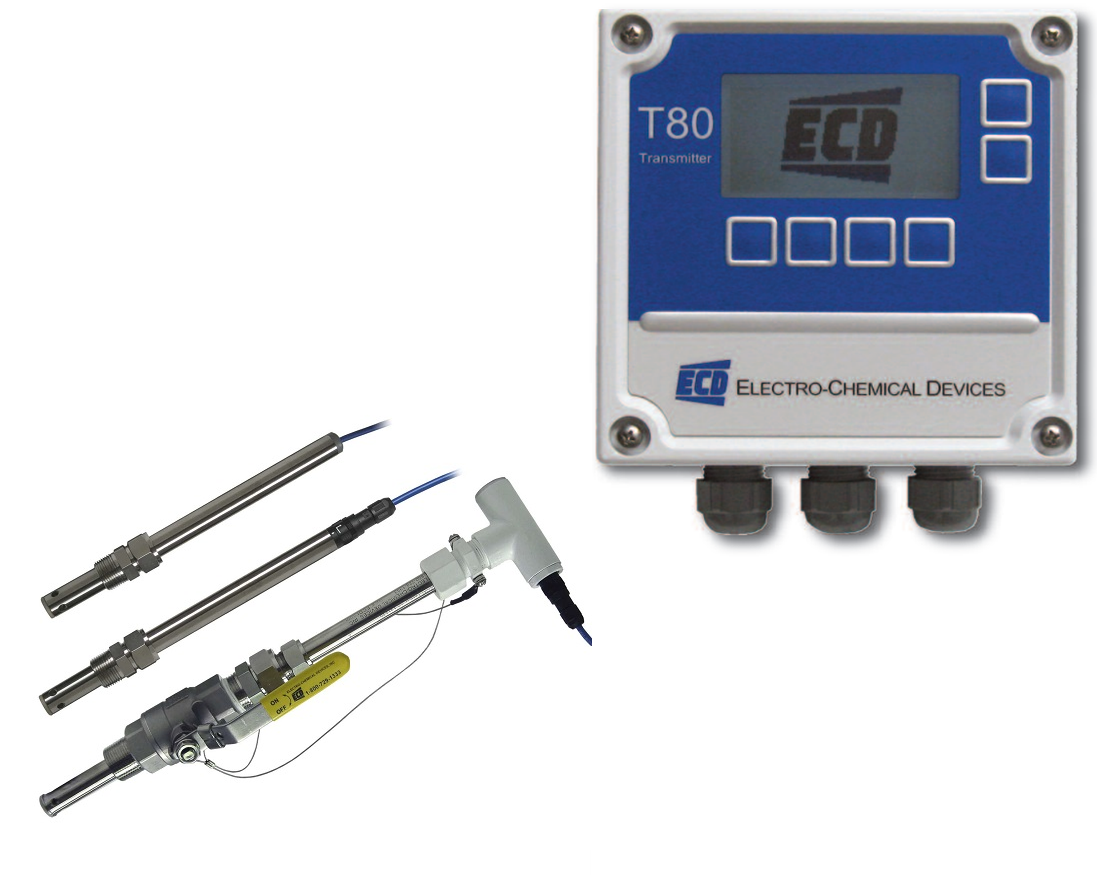

The S80 conductivity monitor is one of the key sensors on offer from the ECD S80 sensor range. The Sensor works by converting the analog signals from the electrode sensor cartridge into a digital protocol which allows for two way communications with the transmitter. The identity of sensor, type and serial number, are stored in the sensor’s internal memory along with the units three calibration registers. When connected to an ECD T80 the sensor’s information is uploaded to the analyser. This automatically configures the display and outputs of the transmitter to the values appropriate to the measurement range and type.
Key Features of the S80 include -
- Intelligent sensor design - storage of calibration and identity information
- Multiple measurement options - pH, ORP, Specific Ion, Dissolved Oxygen and more
- Application specific electrodes - pH electrode designed for specific applications
- Field replaceable electrode cartridges - pH and ISE sensors
- Submersible and retractable mounting options
- Industrial housing materials for process applications
