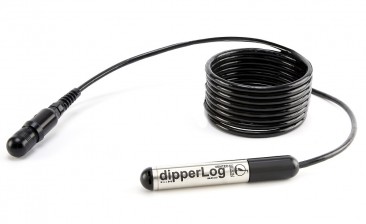

dipperLog VENTED+ Water Level Logger (0 - 60m)

SKU: 54VEN-D

Gauge (Vented) Ground Water Level Data Logger
Including Vented Well Head reader & Mounting Kit

Level Range 0 - 60m
Memory – 128,000 data sets (depth and temperature of water)
Download Speed – 128,000 data sets in 6 minutes (21,333.33 Sets/min)
Battery – up to 15 years or 5,000,000 readings (depending on usage)
Calibration Certificate with each logger
Machined, 316 marine grade stainless steel body and transducer
Able to convert deployment options easily in the field



  • Vented Cable
  • £687.00
  • £824.40 inc VAT
Qty:

Description

  • SKU
    54VEN-D

Gauge (Vented) Ground Water Level Data Logger
Including Vented Well Head reader & Mounting Kit

Level Range 0 - 60m
Memory – 128,000 data sets (depth and temperature of water)
Download Speed – 128,000 data sets in 6 minutes (21,333.33 Sets/min)
Battery – up to 15 years or 5,000,000 readings (depending on usage)
Calibration Certificate with each logger
Machined, 316 marine grade stainless steel body and transducer
Able to convert deployment options easily in the field


The dipperLog VENTED+ is a reliable, cost effective solution for measuring groundwater levels and temperature in wells, boreholes and open bodies of water. The dipperLog VENTED+, incorporates a gauged transducer that measures pressure exempt from barometric influences which is ideal to use in both long and short term monitoring.

The dedicated, intuitive software makes the dipperLog quick and easy to program and launch. Simply recover your data, save your findings in a tabular display and graph, view both parameters side by side in a split screen.




Specification

    Performance
    # of Data Points 128,000
    Download Speed 21,333.33 Data Sets/min (128,000 readings downloads in 6 minutes)
    Water Level Accuracy (Typical) +/- 0.05%FS (0°C to 50°C)
    Temperature Accuracy (Typical) +/- 0.05°C
(Temperature Sensor Meets
ASTM E1112 and ISO 80601-2-56.
NIST Traceability)

    Operating Features
    Pressure Ranges 10m/30ft (14PSI), 30m/100ft (43PSI), 60m/200ft (85PSI), 120m/400ft (171PSI)
    Overpressure Rating 2X Factory Calibrated Range
    Operating Temperature -20°C to 80°C (-5°F to 175°F)
    Pressure Resolution %FS 0.001
    Expected Battery Life (Depending on Usage) Up to 5,000,000 Readings (
Up to 15 Years)
    Warranty 3 Years

    Physical Characteristics
    Wetted Material 316 SS, Delrin®, Buna-N
    O-Ring (Primary) Buna-N
    O-Ring (Backup) Viton
    Transducer 316 SS Piezoresistive Silicon
    Length 145mm / 5.7”
    Diameter 22mm / 0.87”
    Weight 170g

    Deployment Options
    Direct Read

    Note: In "Log Time" mode the dipperLog increases the readings from 1 second by an additional 1 second for 255 readings. The final reading interval is 4 min. and 14 sec. and the logger then stops logging. This mode logs for a total of 9 hours before stopping.

    Direct Read Cable 1/8" Polyurethane
